| Brand Name: | OEM |
| Model Number: | SBC30 SBC45 |
| MOQ: | 1 |
| Price: | USD427-708/set |
| Payment Terms: | Local collection T/T L/C D/P |
| Supply Ability: | 10000 per month |

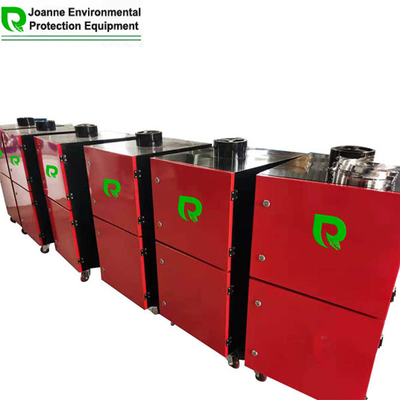

The Weld Fume Extractor is a top-of-the-line Metal Fume Extracting Equipment designed to effectively remove harmful fumes and smoke generated during welding or laser processing tasks. With its powerful filtration system and innovative design, this Welder Fume Extractor ensures a clean and safe working environment for welders and operators.
Whether you are working on large-scale welding projects or intricate laser processing tasks, the Weld Fume Extractor is a must-have equipment for maintaining air quality and ensuring the well-being of operators. Invest in this top-notch fume extraction system today and experience the benefits of a cleaner and healthier work environment.
1. Advanced Motor
We use CE certified motor for all model (motor CE certificate is available, please request from sales), it's the top-level motors on the international market.
2. Overload Protection
The machine is adopted overload protection circuit, can effectively prevent overload and short circuit, which can make the machine has high security and stable performance.
For high-end users, we could use Schneider electrical components (such as Breaker, AC contactor), to guarantee user's absolute safety.
3. High Temperature Resistant Suction Hose
A suction hose with a high temperature resistance of 400℃ is available, which provides better fire resistance and safety.

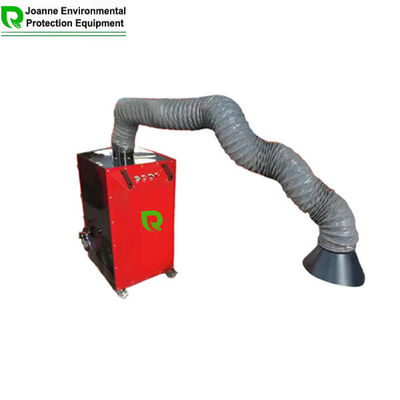

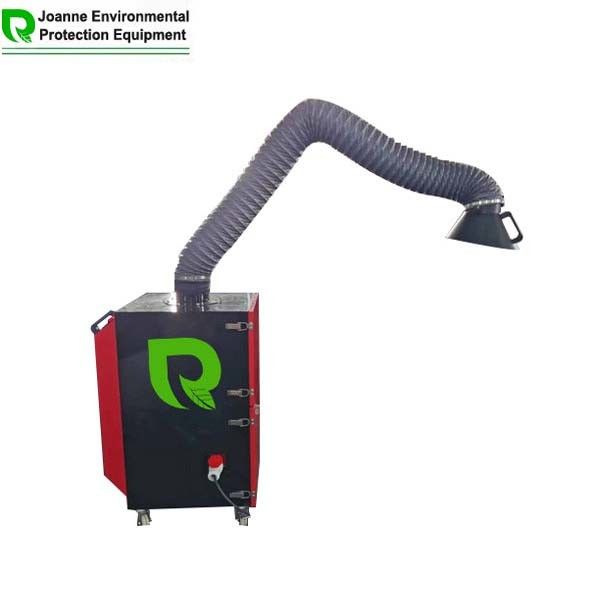

4. Advanced External Articulated Arm
The external articulated arm can hover at any position in the space and rotate freely, bring very small resistance during suction.
5. A Variety of Suction Arm Designs Accept Customization
1) Optional 2.5m and 3m telescopic suction arms can be equipped according to needs.
2) 3 stage Nederman arm available.
6. Extraction Hood Customizable
The Extraction Hood shape can be customized, such as U shaped, Hat shape, Taper shape, or other special shape.
7. Function Extension Available
Flame screen, Working spotlight, Smoke sensor and Temperature sensor.
8. Polyester Fiber Cartridge Filter
Membrane-covered filter material is adopted to block large particles of smoke and dust. The filtration density is greater than 99%.
9. Activated Carbon Fiber Filter Plate
Activated carbon fiber filter plate or activated carbon box are optional, mainly purifying Co, H2, CO2, NO, HF, and MnO produced by welding.
| Model | Structure | Air Flow | Filter Area | Power | Cartridge Filter size & quantity |
Selfcleaning Mode | Overall Size (L*W*H) |
| WFP-QD-SOS25 | Single Extraction Arm | 480m³/h | 4m³ | 0.25KW | Φ325*300*1 set | Manual operation | 380*405*507mm |
| WFP-QD-SSC220 | Single Extraction Arm | 1500m³/h | 12m³ | 1.1KW | Φ325*300*1 set | Manual operation | 460*480*890mm |
| WFP-QD-SBC11 | Single Extraction Arm(Big Body) | 1500-2000m³/h | 12m³ | 1.1KW | φ325*500*1 set | Fully automatic cleaning (Compressed air pulse jet) |
500*700*1000mm |
| WFP-QD-SFB20 | Single Extraction Arm | 2000-2500m³/h | 16m³ | 2.2KW | φ325*300*1 set | Manual operation | 530*670*1040mm |
| WFP-QD-SBC30 | Single Extraction Arm(Big Body) | 2000-2500m³/h | 16m³ | 2.2KW | Φ325*500*1 set | Fully automatic cleaning (Compressed air pulse jet) |
500*700*1000mm |

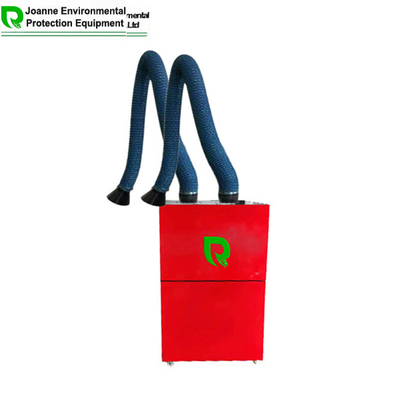

| WFP-QD-WSC12 | Double Extraction Ams | 2500m²/h | 24m² | 2.2KW | φ325*300*2 sets | Manual operation | 530*670*1040mm |
| WFP-QD-WBC22 | Double Extraction Arms(Big Body) |
2500m²/h | 24m³ | 2.2KW | Φ325*500*2 sets | Fully automatic cleaning (Compressed air pulse jet) |
750*800*1200mm |
| WFP-QD-WFB30 | Double Extraction Arms(Big Airflow) |
3000m²/h | 32m³ | 3KW | φ325*300*2 sets | Manual operation | 530*670*1040mm |
| WFP-QD-WFB45 | Double Extraction Arms(Big Airflow, Big body) |
3000m³/h | 32m³ | 3KW | Φ325*500*2 sets | Fully automatic cleaning (Compressed air pulse jet) |
750*800*1200mm |
The industries that can benefit from Industrial Welding air cleaner:
Take action now and order your industrial welding air cleaner to ensure a healthy and safe working environment for your employees!
