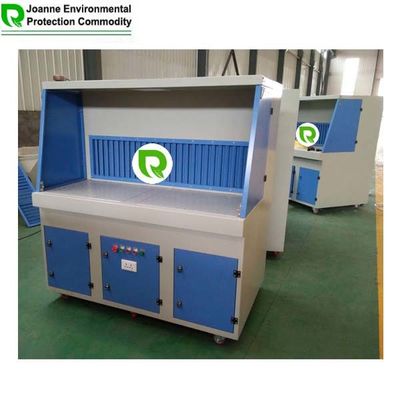

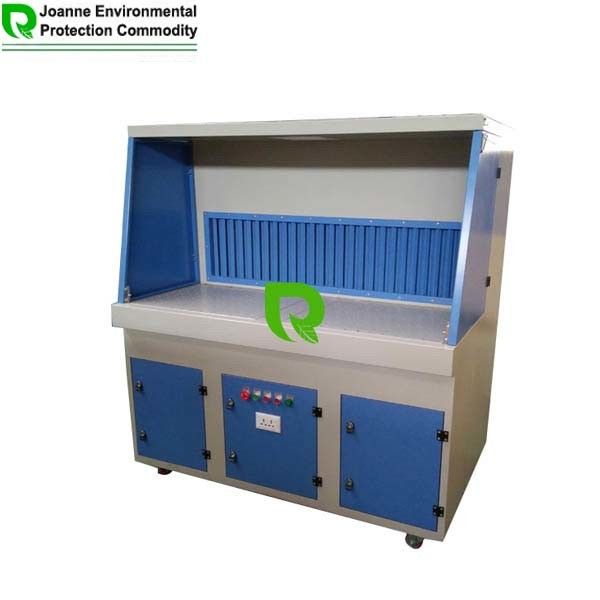

Automatic Dense Dust Treatment Downdraft Bench Metal Parts Polishing Process Dusts Extraction

Automatic Dense Dust Treatment Downdraft Bench Metal Parts Polishing Process Dusts Extraction

Application

It is commonly believed that downdraft bench can be used for welding fume extraction, but this is actually a misconception. The natural updraft of welding fume at high speeds from the bottom makes it nonsensical to use a downdraft table. This leaves us with a dilemma; either downdraft tables are not effective for welding fumes, or the airflow requirement to make them work is too costly.

A downdraft bench plays a vital role in fixed grinding, polishing, sanding, and cutting machines as it can suck in particles and fine dust downwards to ensure a clean workspace. It also reduces workers' exposure to smoke and dust. The table is equipped with a handheld grinder power supply on the workbench, an electronic control system for turning off suction and starting filter self-cleaning, a dust collection tray at the bottom, and a fire-resistant pre-filter plate to prevent sparks from entering the pipeline. We can customize the size of the table to meet your specific needs and provide you with a perfect mobile or fixed vacuum and cleaning all-in-one machine. This machine has a powerful vacuum that eliminates the need for additional dust collectors. Additionally, we offer optional, removable side and top metal walls to prevent high-speed particles from escaping during grinding. The entire machine can be equipped with an explosion-proof system, including explosion-proof switches, explosion-proof motors, anti-static filter cartridges, and explosion-proof lights, based on your specific working conditions. These working conditions might include processing of light metals, materials with low ignition points such as aluminum and copper, and materials that generate static electricity easily such as plastic fibers.

Our heavy-duty pull-down table is a game-changer as it eliminates the dusty mess in your workspace. Our CE certified motor saves you 30% in energy consumption. Other machines may use second-hand, refurbished motors, which have high energy consumption and a short life span. Our motor fan and filter are close to each other but in separate chambers to enable high efficiency while ensuring that no dust could enter the motor during dust suction, thus ensuring the long service life of the motor. Other machines might have a simple structure that results in low fine dust adsorption efficiency. Our unique tool shelf design provides the operator's legs with a place to relax and rest, which makes it ergonomically perfect. This unique design enables comfortable and convenient operation. Other machines may have no such design and still rely on old, simple designs without any creativity.

Advantages

1. Flame retardant anti-static filter cartridge increases the filtering area, purifies thoroughly, is durable, and does not need to

be replaced frequently.

2. High efficiency fan, greater suction power and obvious dust removal effect.

3. The table has uniform wind speed, multi-directional double absorption, and can adsorb dust downdraft and upward at the same time.

4. The structural design is novel, in line with ergonomics, and the operator can work sitting.

Features

1. The unique box type side baffle adopts micro strip slit hole design on the inner wall, which can prevent splashing sparks from rebounding and hurting people. The built-in high-efficiency flame-retardant silencing fiber has good sound-absorbing effect. The box type side baffle can be opened according to the shape and length of the workpiece, and the maximum opening angle can reach 180°.

4. The dust purification room is equipped with a standard filter cartridge, flame-retardant shroud, fire flowers, dust separation, and reduce the direct impact of dust on the filter element, so as to prolong the service life of the filter element (the cumulative service time of the filter element can reach 6000h-8000h). Drawer type dust collecting box, convenient and fast dust removal.

Note: It would be very convenient to replace the filter: Hold the cartridge filter by your hands and rotate. Clockwise rotate the cartridge filter to take it down from the table; Anticlockwise rotate the cartridge filter to fasten it on.

The filter from replacement can be reused, as long as it can be cleaned thoroughly, you can clean it by using compressed air.

5. The cabinet body sheet metal adopts high-quality high-strength galvanized plate for electrostatic plastic spraying on the surface, multi-layer anti-corrosion and anti rust process, with large plate thickness, high strength, firmness and durability.

6. The integrated electric control panel is equipped with two groups of industrial socket power supply as standard to meet the use of electric tools. Left hand start stop position, safe and convenient operation. The standard automatic back blowing and soot cleaning system has good soot cleaning effect. Three proof lamp lighting, bright working space. There are standard models and explosion-proof models, which can be selected according to different grinding materials.

7. Customized according to the voltage requirements of different countries, supporting 220V, 380V, 400V, 480v, etc.

8. Scientific ergonomic design, large knee space. It can meet the sitting and standing requirements of operators. The fixed and mobile design can meet a variety of service conditions. The independent removable table design can be replaced according to the load-bearing requirements and other requirements of customers.

9. High efficiency nano flame retardant filter element, imported material, high flame retardant grade, truly non spontaneous combustion and high filtration efficiency.

10. Durable quality high efficiency noise reduction draught fan, low energy required to save your manufacturing cost;

11. Imported double fireproofing filter cartridge, with filter screen, no longer need to replace the filter cartridges frequently(recycle used, service life upto 24 months).

12. High strength caster, high load-bearing capacity, good mobility.

13. Big air flow style is customizable to meet the Sand blasting processing technic with large amount of dust.

14. Working table's size, height are all customized accroding to different processing technic;

15. Humanized design help reduce the work intensity and worker's fatigue.

16. Mature manufacturing skills, Very Fast delivery for customized model.

Model

(Hot selling)

Working Principle

Under the negative pressure generated by the fan, the large particle dusts directly falls into the dust collector drawer under the action of gravity after colliding with the deflector, while the fine particles enters into the cartridge filter chamber, the air pass through the cartridge from the outer surface of it, and the dust is blocked by the cartridge and absorbed on its surface.

When the blocked dust is continuously deposited on the surface of the cartridge, the cartridge can be cleaned by a manual cleaner, or can be cleaned by pulse jet by air compressor. The cartridge can be used repeatedly after cleaning, the longest use time can reach 24 months, and the purified clean air is discharged to the surrounding.
