Siemens PLC Control On Torch Welding Fume Extraction Unit 400℃ Resistance Welding Fume Exhaust System

Siemens PLC Control Weld Fume On Torch Fume Extraction Unit With Welding Fume Hood Resistant To 400℃ Temperature

Product Description:

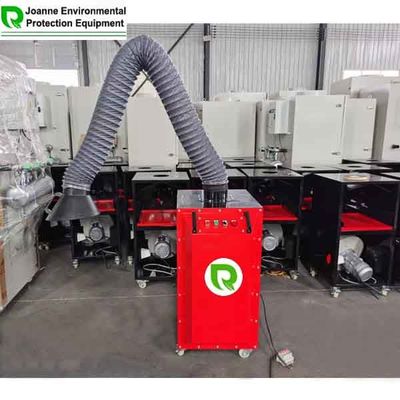

The portable fume extractor is equipped with a single flexible arm that has multiple layers of filter which make it an efficient tool for welding tasks. The four layers of filter include spark arrestor, gravity separator, main filter cartridge and activated carbon filter (optional, generally for customized models only). The portable fume extractor comes with CE motor, but a high vacuum pressure motor is available as well.

The inlet arm has a diameter range of 0-160mm, while the suction arm can extend up to 2.0 meters (maximum 3 meters). With these features, our welding fume exhauster can be used for various welding processes including TIG, GTAW, Stick, SMAW, Fluxed-Cored, FCAW, Robotic Welding, and Aluminum Welding.

Parameters:

Features:

• Product Name: Portable Fume Extractor
• Filtering Efficiency: 0.3μm 99.97%
• Efficiency: 99.97%
• Temperature Resistance: 100-400℃
• Surface Treatment: Power Coating, Painting, Original(Stainless Steel)
• Filtering Efficiency: 99.97% 0.3micron

Technical Specifications:

Models:

Packing and Shipping:

Product Packaging:

The Portable Fume Extractor will be securely packaged in a sturdy cardboard box with foam inserts to prevent any damage during shipping. The product will also be wrapped in plastic to ensure it stays dry during transit. The packaging will include a user manual and power cord.

FAQ:

1. How close should my fume extractor’s hood be to the welding arc?

Welding fume extraction hoods should be placed close enough to the welding arc to be effective, yet not so close as to distrub shielding gases perform its function.

2. How do I dispose of used filters?
Used filters can be easily removed from the extractors. We recommend the operator wearing gloves and protective eyewear, placing the removed filters into a trashbag;

However, before this, please make sure that the filter cartridge can still be used after cleaning and drying, because we manufacture the filter cartridge with the material that can be used again and again.

3. How do I know which extractor to choose?
There are several factors that determine the best extractor to use, including location, usage, materials, and quantity of smoke/fume produced. In general, however, this fume extractor is mainly used to remove smoke, not suitable for a large amount of dust working conditions.

4. How do I know which filters to use in my extractor?

We makes a wide variety of filters available that work in combination to provide the best possible filtration for your work application. Generally speaking, 95% smoke and fume suitable for use with cartridges style filter.

5. How long do filters last?
There is no clear answer to this question as too many factors can influence the life of filters, including, but not limited to, welding process.

6. If I were to exhaust welding fumes outdoors through a wall mounted arm and blower, can I retrofit the components to a filtration system should this method become prohibited?
Yes, the stationary system is designed to accommodate such a change in regulations, so you can purchase.

7. Why should I use a fume extractor instead of an ambient (overhead) air cleaner?

Ambient air cleaners are effective supplements to fume extractors, but should be avoided as a primary tool for fume control. Due to its filtering properties and relatively high usage costs.
