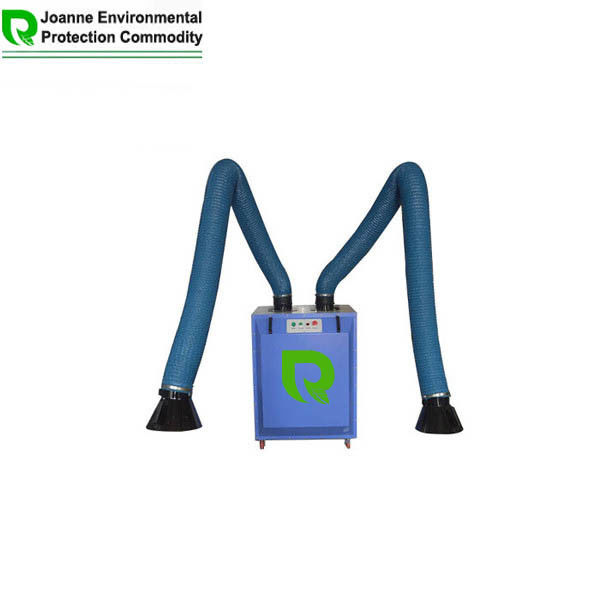

3kw Automatic Welding Smoke Eater For Smoke / Dust Treatment 400℃ Resistance

3kw Automatic Welding Smoke Eater For Smoke And Dust Treatment 400℃ High Temperature Resistance

Product Description:

The welding fume extractor is an effective solution for air purification and flue gas filtration during different welding processes like argon arc welding, arc welding, carbon dioxide gas-shielded arc welding, electroslag pressure welding, oxygen-acetylene gas welding, flash butt welding, ultrasonic welding, and other welding processes.

Our Welding Smoke Eater offers numerous advantages over other manufacturers' products. These advantages include: Ten years with zero malfunctions, designed for a service life of twenty years. Ensure brand new, CE certified motors with high vacuum pressure optional. Independently developed cartridge filter, with a service life of up to 1 year or even longer, using imported materials such as Toray filtration material to make the filter cartridge, with high efficiency in filtering pollutants and high filtration grade(can filter dust with a minimum size of 0.3μm). Pure copper motor, copper core cable, with leakage protection and grounding protection to ensure user safety, meet European market access requirements.

The treatment of welding smoke is crucial to maintaining a clean, safe workplace. Without proper filtration, welding smoke can significantly harm the operator's health. Thus, choosing the right welding smoke extraction system is essential. There are two types of fume extraction systems available: Low vacuum pressure with High flow volume rate and High vacuum pressure with Low flow volume rate. Each design has unique advantages and application requirements, so business owners in the welding field must understand their differences and choose the most suitable solution for their specific welding applications.

Low vacuum high flow systems offer lower initial costs but may require more frequent maintenance to maintain optimum extraction efficiency. High vacuum low flow systems have higher upfront costs but offer better extraction efficiency and reduced maintenance requirements.

Features:

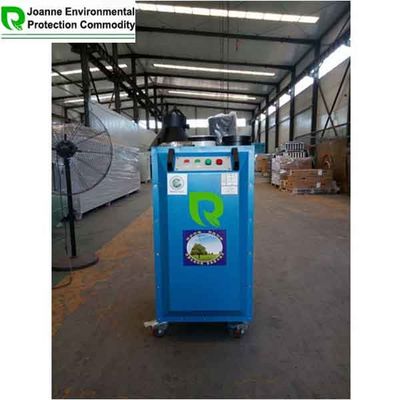

The fume extractor machine features a carbon steel shell and copper wire winding, with a large diameter air inlet. Its energy-saving and noise-reduction design enhances strong wind and ensures safety and stability.

The energy-saving motor operates silently for 24 hours a day and is certified with CE. Its pure copper motor ensures durability and a long life. The machine comes with a 2-year long warranty.

The machine is equipped with an overload protection circuit to prevent overload and short circuit effectively. This ensures high security and stable performance when in use.

The suction arm is designed to resist a temperature of up to 400℃. It hovers 360 ° flexibly, has good air tightness, strong toughness and no dead angle to absorb dust.

The universal flexible suction arm can hover at any position of 360° through the principle of two-force rod. It is suitable for smoke and dust emission working conditions like welding, grinding, and material dumping. The point-to-point capture method effectively captures the smoke and dust and prevents it from spreading. It keeps the dust and smoke away from the breathing area of the workers, thereby protecting their health. The machine comes with a 3-stage Nederman arm available.

The extraction hood's shape is customizable, whether that be U shaped, Hat shape, Taper shape, or any other special shape.

The machine comes equipped with additional function extension accessories like a flame screen, working spotlight, smoke sensor, and temperature sensor

The hose inner bracket is made of stainless steel and is corrosion resistance, acid and alkali resistance, high temperature resistance, and lightweight. It comes with power-assisted devices that enable a labor-saving operation and allows it to hover freely. Its solid steel material ensures its sturdiness and guarantees it is durable.

The fume extractor machine features a membrane-covered filter material designed with fire resistance to block large particles of smoke and dust. The filtration density is greater than or equal to 99%, and it can be used repeatedly without frequently requiring a replacement. The activated carbon fiber filter plate is made of high polymer material bonded on non-woven fabric. It primarily purifies Co, H2, CO2, NO, HF, and MnO that result from welding.

The fume extractor machine's insides come equipped with three protective layers, which effectively blocks the fire hazard and large unextinguished welding particles and molten slag particles, making the machine more reliable, safe, and extending its service life.

The machine comes with high-strength load-bearing casters that make it movable while maintaining a stable fixture. A forma caster, which is good at climbing hills, is available for installation. Additionally, a cooling equipment system provides overheat protection. It comes with thickened hinges for durable use.

Technical Parameters:

Treatment of air flow: 1500-3000±100 m3/h

Motor Power:

• 1.5kW
• 2.2kW
• 3.0kW

Power supply:

• 220v/50Hz
• 380v/50Hz

Filtration area: 16-32 m2

Number of filter cartridges: 1-2 pcs

Cartridge performance: Fireproof, anti-static, can be used repeatedly

Filter medium: Synthetic cloth or pulp fiber

Filtration efficiency: >99.9%

Noise: ≤65±5dB(A)

Ash hopper volume: 1.5 L

One suction arm:

• Ø160mm*2.5m
• Ø160mm*3.0m

Weight (excluding suction arm):

• 80±5KG
• 130±5KG

Dimensions (Single arm style, excluding suction arm): 530×700×1000mm

Dimensions (Double arms style, excluding suction arm): 750×830×1200mm

Power:

• 2HP(1.5KW)
• 2.95HP(2.2KW)
• 4HP(3KW)

Customized voltage:

• 1 Arm 3 HP, 120V/1/60
• 2 Arms 4 HP, 480V/3/60

Arm length:

• 9.8 ft. Suction Arm
• 8.2 ft. Suction Arm

Voltage:

• 110/120V
• 208/230V
• 380/400V
• 415V

Self cleaning method: Manually or Compressed Air Pulsing

Suction arm diameter: 6.3″

Applications:

Industrial welding activities not only contribute to economic growth but also pose serious health risks to workers and the surrounding environment. Welding fumes and smoke released during the process can lead to respiratory problems, causing long-term health issues for workers and negatively impacting the air quality of the workspace. To address this concern, we introduce the Industrial Welding Fume Extractor.

The Industrial Welding Fume Extractor is a highly effective environmental protection equipment that can be used in various industries such as heavy equipment manufacturing, fabrication, mining, printing, maintenance and repair, and other smog-producing activities. It is suitable for arc welding, CO2 protection welding, MAG protection welding, special welding, cutting, and grinding, collecting clean smoke and dust. The purified air can be discharged directly in the room, improving the air quality and preventing respiratory problems for workers.

The Industrial Welding Fume Extractor can be used in all metal welding, laser cutting and engraving, plasma cutting, and polishing and grinding with low dust production. It ensures a healthy and safe working environment for workers, increasing productivity and reducing health risks.

Protect your workers and ensure a safer working environment by ordering the Industrial Welding Fume Extractor today!

Model list:

Support and Services:

Our Welding Smoke Eater product is designed to efficiently and effectively remove welding fumes and smoke from your workspace, providing a safer and healthier work environment for your employees.

We offer technical support and services to help you get the most out of your Welding Smoke Eater. Our team of experts can assist you with installation, maintenance, and troubleshooting to ensure that your product operates at its best.

Our services include:

• On-site installation and setup
• Regular maintenance and filter replacement
• 24/7 technical support
• Training and education on proper use and maintenance

We are committed to providing the highest level of customer service and support for our Welding Smoke Eater product. Contact us to learn more about our services and how we can help improve your workplace air quality.

Packing and Shipping:

Product Packaging:

• 1 Welding Smoke Eater Unit
• 1 User Manual
• 1 Power Cord
