Electric Down Draft Table Plasma Table 880 CFM - 4700 CFM Air Flow

Down Draft Table Smoke Exhauster Plasma Tables For Metal Fabrication Companies Sequential Timer To Control Compressed Air While Cleaning

Product Description:

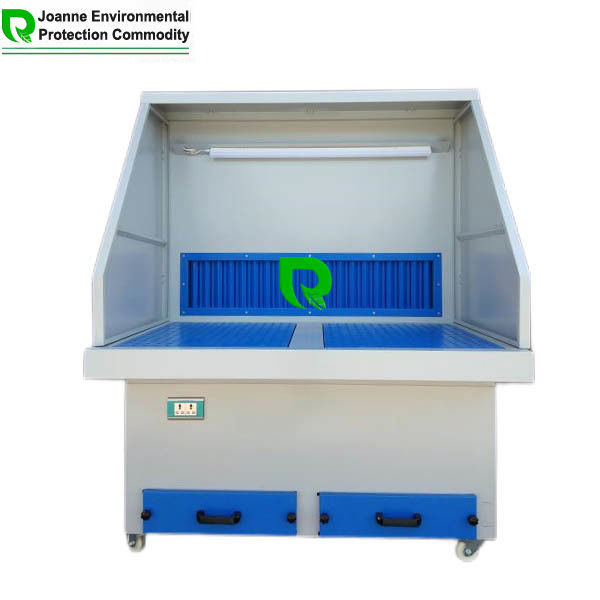

A down draft table is a crucial equipment in various industrial processes, including fixed grinding, polishing, sanding, and cutting. The machine is designed to suction in particles and fine dust downwards, ensuring a clean workspace, and reducing workers' exposure to harmful smoke and dust. The down draft table is equipped with a handheld grinder power supply on the workbench, an electronic control system for turning off suction and starting filter self-cleaning, a dust collection tray at the bottom, and a fire-resistant pre-filter plate to prevent sparks from entering the pipeline. The machine can also be equipped with an explosion-proof system, depending on the working conditions, including explosion-proof switches, motors, and anti-static filter cartridges, among others. However, it is important to note that the down draft table should not be used for welding purposes.

Our down draft table stands out from other machines in the market. It features a unique tool shelf and ergonomic design that ensures workers' comfort, even during extended working hours. The operator's legs have a place to rest, which is not a feature present in other machines. Our down draft table also has an advanced design that enables convenient and comfortable operation. Other machines in the market retain a simple, old design with no creativity or ergonomic features.

We use CE certified motors that are made in a reputable big factory, which guarantees quality and durability. The design services for our machine lasts up to 20 years, providing long-term service to our clients. Other machines in the market use non-CE certified motors, which are mostly made in small factories and are often second-hand or reconditioned. These motors break down quickly after approximately two years of use, which is inconvenient. Our down draft table also requires low maintenance, involving only cleaning the pre-filters and underlying interior filters below and emptying the bottom drawer when needed. The machine's service life is long compared to other machines in the market that require frequent replacements due to short service life.

Features:

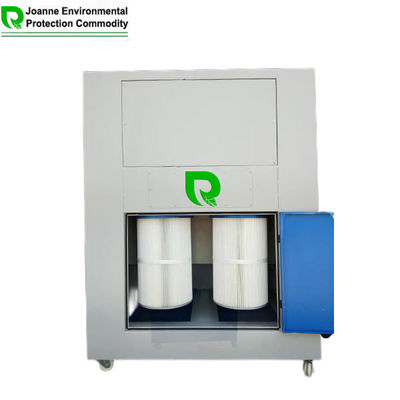

The dust purification room features a standard filter cartridge, flame-retardant shroud, fire flowers, dust separation, and dust impact reduction on the filter element, which substantially lengthens the filter's service life (up to 6000-8000 hours). It also includes a convenient drawer type dust collecting box for easy and fast dust removal. Filter replacement is made easy as well: For removal, hold the cartridge filter by your hands and rotate it clockwise, while for installation, rotate it anticlockwise to fasten it back onto the table.

The filters from replacement can be reused provided they are cleaned thoroughly, and this can be achieved through compressed air.

The cabinet body sheet metal is made of high-quality high-strength galvanized plate that is surface-treated with multi-layer anti-corrosion and anti-rust processes, resulting in improved durability, stability, and strength.

The integrated electric control panel is outfitted with two groups of industrial socket power supply to support electric tool use. It has a left-hand start-stop position for safe and convenient operation, along with a standard automatic back-blowing and soot cleaning system which ensures good cleaning effect. The space is illuminated by a three-proof lamp, giving it a bright working area. Standard and explosion-proof models are available for different grinding materials.

It supports 220V, 380V, 400V, and 480V for countries with different voltage requirements. The design is ergonomically-focused, providing ample knee space for operators in both sitting and standing positions. It also comes with fixed and mobile options, with an independent removable table that can be customized to meet specific load-bearing requirements and other demands. The high-efficiency nano flame retardant filter element uses imported materials with high flame retardant grades and enhanced filtration efficiency.

The high-quality, low-energy, noise-reducing fan ensures efficient and cost-effective manufacturing. The imported double fireproofing filter cartridge has a filter screen, eliminating the need for frequent replacement (it can also be recycled for up to 24 months). The high strength caster has a lot of weight-bearing capacity and good mobility.

The air flow style is customizable catering to Sandblasting processing technologies. The working table's size and height can be customized according to different processing requirements. It has a humanized design that reduces work intensity and worker fatigue. With mature manufacturing skills, customized models can be delivered very quickly.

Technical Parameters:

Through the action of a fan generating negative pressure, this machine is able to efficiently remove dust from the air. Large particle dusts are directed towards the dust collector drawer by a deflector, while fine particles are filtered through the cartridge filter chamber. The air passes through the outer surface of the cartridge and the dust is trapped and absorbed on its surface.

As the dust on the cartridge's surface accumulates, it can be manually cleaned or cleaned by pulse jet using an air compressor. After cleaning, the cartridge can be reused and have a lifespan of up to 24 months. The purified air is then discharged into the surrounding environment.

Applications:

The equipment is versatile and can be used for a range of applications, including welding, polishing, grinding, and workpiece deburring. Additionally, it is suitable for use in plasma cutting, sanding, and other related tasks.

This equipment is highly versatile and finds extensive use in an array of industries. The equipment is highly appropriate for industries involved in food processing, electronics, pharmaceuticals, tobacco, chemical, smelting, shipbuilding, mechanical casting, cement, and building materials. Its applications include dust removal, material recovery, and air filtration, which makes it an indispensable tool for these industries.

The equipment has been designed keeping the diverse production processes in mind. Therefore, it is highly adaptable and widely adopted for a range of applications. This equipment finds extensive use in industries like electric power, electronics, pharmaceuticals, tobacco, chemical, smelting, shipbuilding, mechanical casting, cement and building materials. Its applications include dust removal, material recovery, and air filtration, making it an absolute favorite amongst those in the know!

Customization:

Our DY Down Draft Table, Model Number DB 1A-3.5A, is manufactured in China and comes with BAV ISO CE certification. The minimum order quantity is 1 Set, and the price ranges from USD1000-4000. Our packaging details include inside protection plus outside wooden box for safe shipping.

We offer a delivery time of 3-7 working days and accept payment terms of T/T, L/C, D/P, and Western Union. With a supply ability of 3000-5000 sets per month, we guarantee timely delivery. You can choose from a variety of colors for your Down Draft Table, as all colors are available.

Packing and Shipping:

Product Packaging:

• The Down Draft Table will be securely packed in a sturdy cardboard box.
• The box will be labeled with the product name, quantity, and any handling instructions.

Shipping:

• The Down Draft Table will be shipped via standard ground shipping.
• Shipping costs will be calculated based on the destination and weight of the product.
• Customers will receive a tracking number once the product has shipped.
