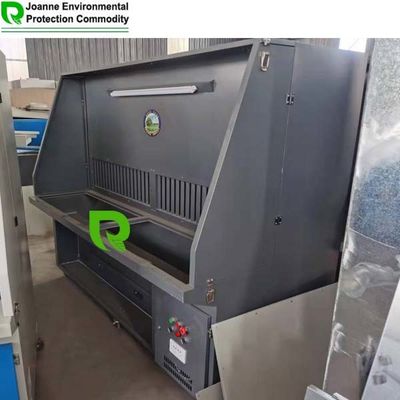

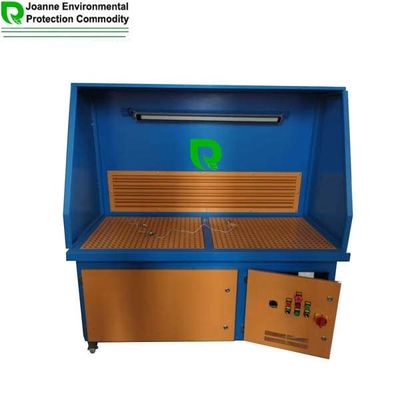

Fire Resistant Extraction Table Industrial Downdraft Table For Metal Polishing Cutting Dust Control

Fire-Resistant Extraction Table For Metal Polishing And Metal Cutting Dust Control Wearproof

Product Description:

Extraction tables play a highly important role in fixed grinding, polishing, sanding, and cutting devices. In these industrial processes, particles and fine dust can be generated, which can pose a threat to the work environment and the workers' health. However, extraction tables can effectively suck in these particles and dust downwards, making it possible to maintain a clean workspace and reduce workers' exposure to smoke and dust. It is worth noting that grinding and plasma cutting are usually done at the same time as welding. However, there is a common misconception that extraction tables are suitable for welding fume extraction. In reality, welding fumes naturally rise at high speeds, making it impossible for extraction tables to effectively capture them. Therefore, extraction tables are not suitable for welding, but they are perfect for plasma cutting or a grinding workstation.

At our company, we offer extraction tables that can be customized according to your workpieces and workstation plans. Not only that, but we also provide all-in-one machines with powerful vacuum power that can eliminate the need for additional dust collectors. In addition, our machines are equipped with special features to meet specific grinding work conditions. For example, if you're working with light metals or materials that generate static electricity, we can equip the entire machine with an explosion-proof system that includes explosion-proof switches, motors, filter cartridges, and lights. It is essential to purchase extraction tables from a reliable provider who offers machines with high-quality components and ergonomic design. At our company, we ensure our machines are CE certified, energy-saving, and guaranteed for 20 years of design service time. With our unique ergonomic design, workers can work for long periods without getting tired, making for comfortable and convenient operation.

On the other hand, other providers may offer machines that lack such design and are made in small factories. Some machines may even use second-hand, refurbished motors, which can easily break down after a few years of use. Additionally, our machines come with complimentary high-quality special-designed cartridge filters available for each unit of the machine. We also provide one set of cartridge filters and a full set of spare parts each year to ensure that the machine can be replaced quickly because of wear or damage caused by improper use. Other providers may only offer simple and cheap accessories.

Features:

1. Unique Box Type Side Baffle Design

The box type side baffle of the equipment features a micro strip slit hole design on the inner wall. This design is effective in preventing the splashing sparks from rebounding and hurting people. Additionally, the built-in high-efficiency flame-retardant silencing fiber has a good sound-absorbing effect. The box type side baffle is adjustable and can be opened as per the shape and length of the workpiece, with the maximum opening angle being 180°.

2. Proprietary Impeller Structure and Fan Design

The equipment has a proprietary impeller structure and high-efficiency fan, which ensure high wind pressure, large suction, low noise, and low energy consumption. The equipment also features suction vents on the bottom and front of the workbench, which effectively control the dispersion of dust by improving ventilation.

3. Patented Semi-Closed Dust Suppression Structure

The equipment employs simulation, fluid dynamics calculation, and patented design. Its semi-closed dust suppression structure, along with the labyrinth side suction plate, pre-separates large particle dust. The bottom suction and side suction air volume can also be reasonably distributed according to the dust splash state. The structural design of the inner channel is more efficient, resulting in high dust capture efficiency and no escape.

4. Easy-to-Maintain Dust Purification Room

The dust purification room of the equipment is equipped with a standard filter cartridge, flame-retardant shroud, fire flowers, dust separation, and more. The equipment is also equipped with a drawer-type dust collecting box for convenient and fast dust removal. The filter cartridge needs to be replaced every 6000h-8000h, and the replacement process is simple: hold the cartridge filter and rotate it to take it down from the table, and then fasten the new filter cartridge on.

5. High-Quality Sheet Metal Body

The cabinet body sheet metal of the equipment uses high-quality high-strength galvanized plate for electrostatic plastic spraying on the surface, resulting in a multi-layer anti-corrosion and anti-rust process. It has a large plate thickness, high strength, firmness, durability, and more.

6. Integrated Electric Control Panel

The integrated electric control panel of the equipment features two groups of industrial socket power supply as standard to meet the use of electric tools. The position of the left-hand start-stop is convenient and safe. The standard automatic back blowing and soot cleaning system effectively cleans the dust. Three-proof lamp lighting ensures bright working space. The equipment has standard models and explosion-proof models that can be selected based on different grinding materials.

7. Customizable for Different Voltage Requirements

The equipment can be customized according to the voltage requirements of different countries. It supports 220V, 380V, 400V, 480v, and more.

8. Scientific Ergonomic Design

The equipment has a scientific ergonomic design, with a large knee space that can meet the sitting and standing requirements of operators. The fixed and mobile design makes it applicable to a variety of service conditions. The independent removable table design can be replaced according to the load-bearing requirements and other requirements of customers.

9. High-Efficiency Nano Flame Retardant Filter Element

The equipment uses a high-efficiency nano flame retardant filter element with imported material, high flame retardant grade, and high filtration efficiency. It is truly non-spontaneously combustible.

10. Durable Quality Noise Reduction Draught Fan

The equipment comes equipped with a durable quality high-efficiency noise reduction draught fan that requires low energy, thus helping to save manufacturing costs.

11. Imported Double Fireproofing Filter Cartridge

The equipment is fitted with imported double fireproofing filter cartridges, which have filter screens and thus eliminate the need for frequent replacement of the filter cartridges. They can be recycled and have a service life of up to 24 months.

12. Customizable Airflow

The equipment's big air flow style is customizable to meet sand blasting processing techniques with a large amount of dust.

13. Customizable Working Table Size and Height

The equipment's working table's size and height are customized according to different processing techniques, ensuring it is adaptable to different needs.

14. Humanized Design

The equipment features a humanized design, which helps reduce the work intensity and worker's fatigue.

15. Fast Delivery for Customized Models

With our mature manufacturing skills, customized models can be delivered very fast, ensuring that you receive your equipment in good time and ready for use.

Technical Parameters:

Applications:

The extraction table is a versatile tool that finds multiple uses in various industries such as machinery manufacturing, casting, building materials, metallurgy, chemical industry, electric power, tobacco, medicine, food processing, etc. The table is commonly utilized in polishing, grinding, and deburring workpieces, as well as in welding and dust removal during plasma cutting operations. Additionally, it serves in material recovery and air filtration in these industries.

The extraction table is especially efficient in specific industries, including Stone processing factories, Foundry steel factories, Steel & Shot Blasting, Metals & Ironworks industries, Wood furniture factories, Rubber processing plants, and Precious metal & Jewelry making.

If you require assistance in designing a customized downdraft table for your work demand, please reach out to us, and our team of experts will work with you to create a tailored solution that is both effective and budget-friendly.

Customization:
