| Brand Name: | DY |
| Model Number: | SBC30 SBC45 |
| MOQ: | 1 |
| Price: | USD427-700/set |
| Payment Terms: | Local collection T/T L/C D/P |
| Supply Ability: | 5000-10000 per month |

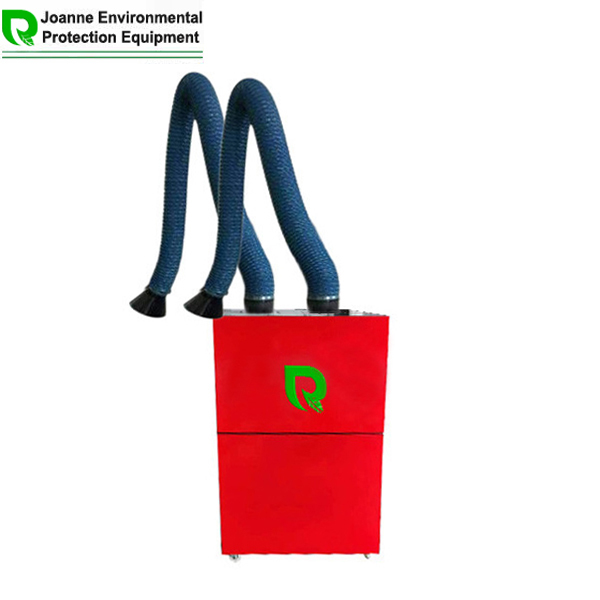

Mobile Fume Extractor , Welding Fume Collector , Industry Air Cleaner Self Cleaning , Mobile Welding Fume Extractor With Air Flow 2500m3/H
One of the key features of this Weld Fume Extractor is its advanced filtration system that can effectively capture particles as small as ≤0.3μm. This ensures that even the finest particles generated during welding or laser processing are efficiently filtered out, maintaining clean air quality in the workspace and protecting the health of operators.
Made from high-quality materials such as steel or stainless steel, the machine body of the Weld Fume Extractor is durable and resistant to the rigors of industrial environments. This sturdy construction ensures long-term reliability and performance, making it a valuable investment for businesses looking to improve air quality and safety standards in their facilities.
Energy-saving silent motor can run for 24 hours per day. CE certified, pure copper motor, stand for durable use, long life, 2 years long warranty.
We use CE certified motor for all model(motor CE certificate is available, please request from sales), it's the top level motors on international market.
The machine is adopted overload protection circuit, can effectively prevent overload and short circuit, which can make the machine has a high security and stable performance.
Schneider Electrical parts and CE certified motors used in our machine. For high-end users, we could use Schneider electrical components(such as Breaker, AC contactor), to guarantee user's absolute safety.
A suction hose with a high temperature resistance of 400℃ is available, which provides better fire resistance and safety. The suction arm hose is made of high-temperature resistant, flame-retardant, and wear-resistant composite materials, which will not crack after sparks burn through, resulting in a longer service life.
1) Optional 2.5m and 3m telescopic suction arms can be equipped according to needs.
2) 3 stage Nederman arm available.
3) The different diameters of the suction hose are determined by the requirements of different air volumes and suction forces.
The fire resistance design of membrane covered filter material is adopted to block large particles of smoke and dust. The filtration density is greater than or equal to 99%. It can be used repeatedly without frequent replacement.
The filter cartridge of the welding smoke and dust purifier adopts multiple materials: those with good fire resistance, those with anti-static and explosion-proof properties, those that can be reused, and imported filter materials with high filtration accuracy can filter out welding smoke and dust of at least 0.3 μm. The service life of the filter element varies depending on the working intensity and smoke volume of the purifier.
Movable and can also stably fix the equipment. Forma caster, which is good at climbing; Bigger casters, such as 4 inches, 5 inches, 8 inches, which can still offer excellent mobility, even when used on uneven outdoor surfaces.
| Machine material | Steel Or Stainless Steel |
| Filter Type | Cartridge Filter |
| Double Arm Machine Size | L750 X W830 X H1200mm |
| Filtered particles size | ≤0.3μm |
| Power | 2HP 3HP 4HP |
| Single Arm Airflow | 2000-2500m3/h |
| Filtration Efficiency | 99.9% |
| Logo customize | Printing Or Painting |
| Usage | Welding Or Laser Processing |
| Self Cleaning | Yes Or Not |
Our industrial welding smoke purifier is designed to cater to a wide range of industries including but not limited to:
