Automatic Filtration Smoke Extractor For Welding Large Air Flow With Flame Screen Prefilter

Self Cleaning Motor CE Approval Smoke Extractor For Welding Large Air Volume With Flame Screen And Prefilter

Product Overview

Compared to products from other manufacturers, our smoke extractors for welding have numerous benefits. We use brand new CE motors that provide high vacuum pressure. If needed, we also offer motors with even higher pressure capabilities. We developed a cartridge filter that can last up to a year. This filtration system uses imported materials, including Toray filtration material, providing high efficiency in filtering pollutants while achieving a high filtration grade. This filter can capture particles as small as 0.3μm. Our machines have a pure copper motor and copper core cable, which includes leakage protection and grounding protection. They ensure user safety and meet the access requirements of the European market. Furthermore, we provide a high-pressure centrifugal fan option to improve the vacuum pressure of the machine. The machine has good sealing, ensuring negative pressure and high air volume.

The entire machine undergoes rust prevention treatment, both inside and outside. We use a powder coating process with a thickness between 200-1000 μm, ensuring the machine will not rust even after extended use in high temperatures, humidity, and corrosive environments. Even if transported over long distances (1-2 months), we offer multilayer export packaging, eliminating any chances of damage. Note that no additional costs will be charged for selecting wooden crate or wooden box packing for the smoke extractors.

Parameters

Selling Point/Advantages

1. The cabinet's sheet metal adopts high-quality high-strength galvanized sheet for electrostatic spraying on the surface, multi-layer anti-corrosion and anti-rust technology, high thickness and strength, firmness and durability. Each machine is equipped with universal brake casters, which are flexible in movement and reliable in fixation.

2. The proprietary impeller structure independently developed by simulation calculation, and its efficient fan ensures the characteristics of high wind pressure, large suction, low noise and low energy consumption.

3. The external suction arm of the skeleton adopts a precision slewing bearing to rotate 360° flexibly, and can be rotated at any position, with a large moving range. There are single-arm and double-arm types to choose from.

4. The simulation design of the catching hood is equipped with a stainless steel spark catching net. The inner wall of the suction pipe is smooth and has no wind resistance. It has an ultra-long catching capacity of more than 500 mm, which is durable and beautiful. There are single and double arms to choose from.

5. The dust purification room is equipped with a filter cartridge diversion cover to prevent sparks and secondary separation dust, and reduce the direct impact of dust on the filter element, thereby prolonging the service life of the filter element (accumulated use time can reach 6000h to 8000h).

6. The design of the air duct adopts a submerged baffle structure, which is more reasonable in design and has low wind pressure loss. The dust collection efficiency is high, and there is no escape. Drawer dust collection box, easy and quick to clean dust.

Machine Details

1. Advanced Filter Cartridge

Good abrasion resistance; flame retardant and high temperature resistance; imported nano flame retardant filter element; large filtration area and high filtration efficiency.

2. Extraction Hood Customizable

The Extraction Hood shape can be customized, such as U shaped, Hat shape, Taper shape, or other special shape.

Function Extension Accessories Available

Flame screen, Working spotlight, Smoke sensor and Temperature sensor.

3. Dust collecting Drawer

A Drawer makes it easy to collect and remove waste and dust, lock in the dust effectively suitable for working conditions with a large amount of dust.

4. Advanced Motor

Energy-saving silent motor can run for 24 hours per day.

5. High-strength load-bearing casters, movable and can also stably fix the equipment.

6. Cooling equipment provides overheat protection

7. Thickened hinges for durable use.

8. New material extraction arm, more simple, more easily, no assembly required.

Model

Single arm

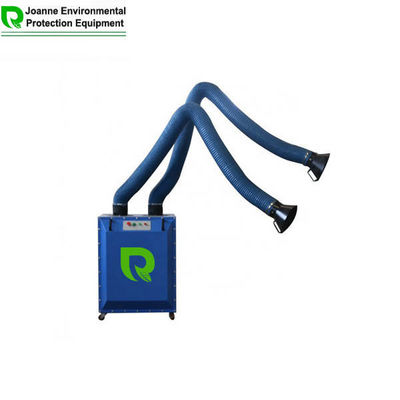

Double arm

More about Dedusting/Pulse-jet cleaning function:

Model SBC, WBC, WFB could be installed with an automatic cleaning system. The equipment has a built-in differential pressure monitoring device. When the filter pressure reaches the specified value, the automatic anti-blow system will be activated and high-pressure back pulse jetting will be performed from the inside of the filter. The dust on the surface of the filter will be blown to the dust drawer, making the surface of the filter to be clean.

The equipment needs to be connected to compressed air, so customers need to prepare their own air compressors. The air compressor is connected to the equipment through a high-pressure hose and sucked from the bottom through high pressure. The automatic cleaning system of the machine ensures that the dust collector is always in good working condition.

Application

Welding fume extractor is industrial environmental protection equipment, which is mostly used in arc welding, CO2 protection welding, MAG protection welding, special welding and other places of cutting and grinding, collecting clean smoke and dust. The air after purification can be directly in the room.
