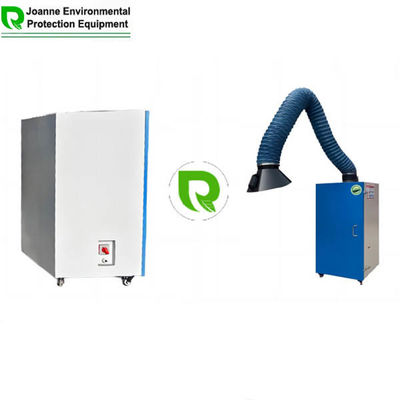

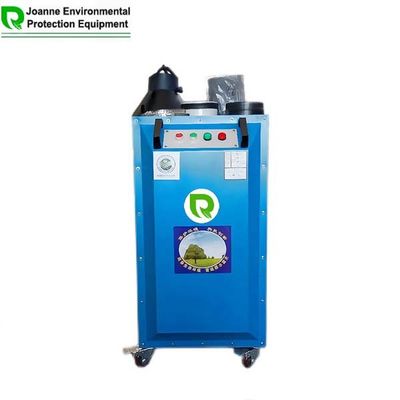

99.9% Filter Portable Smoke Extractor Noxious Fumes Portable Air Purifier For Auto Repair Shop

Name: 99.9% Filter Portable Smoke Extractor Noxious Fumes Portable Air Purifier For Auto Repair Shop
Brand: Joanne Environment Protection Equipment Export Import Co., Ltd.
SKU: SBC20-SBC45
Price: 550.00 USD
Availability: InStock

Brand Name:	DY
Model Number:	SBC20-SBC45
MOQ:	1 unit
Price:	FOB USD330-770/set
Payment Terms:	T/T L/C D/P
Supply Ability:	5000-10000 per month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei China

Certification:

CE BAV ISO(Other certificate available)

Document:

Up-Clients regular Question...or.pdf

Name:

Portable Smoke Extractor

Dimensions:

530mm X 700mm X 1000mm(single Arm)

Filter Type:

Cartridge Filter

Application:

Welding Fume Extraction

Filter Life:

1444-2888 Hours

Frequency:

50/60Hz

Filter Efficiency:

99.9%

Power Source:

Electric

Noise Level:

65-70dB

Packaging Details:

Bubble bag plus standard wooden box(with pallet)

Supply Ability:

5000-10000 per month

Highlight:

99.9% Filter Portable Smoke Extractor

Portable Smoke Extractor Machine

Product Description

1.1-4Kw Heavy Noxious Fumes Source-Capture Welding Smoke Extractor Auto Repair Shops Portable Smoke Extractor

Product Description:

Smoke extractor for welding is a crucial industrial environmental protection equipment. Our smoke extractors for welding are superior to those of other manufacturers due to several advantages: We use a brand new, CE motor, with the option of a high vacuum pressure motor. We have developed an independently-designed cartridge filter, made from imported materials such as Toray filtration material, which can filter dust particles as small as 0.3μm. The cartridge has a service life of up to 1 year and offers high efficiency filtering pollutants with a high filtration grade.

The motor is made of pure copper, with copper core cable, and is equipped with leakage protection and grounding protection to ensure user safety; our welding fume extractors meet all necessary European market access requirements. We also offer a high pressure centrifugal fan that enables high vacuum pressure. The machine's body has superior sealing capabilities, ensuring negative pressure and a high air volume.

Finally, The entire machine is treated with rust prevention, with both the exterior and interior of the body undergoing a powder coating process. The thickness of the powder is between 200-1000 μm, ensuring the machine will resist rust even when used in high temperature, humidity, and corrosive environments over long periods of time. our multilayer export packaging guarantees that no damage will occur during long-distance transportation (1-2 months), even if you choose wooden crate or wooden box packing. And best of all, there will be no extra charge for this service!

Features:

Product Features:

1. Efficient Silent Fan

The fume extractor boasts a carbon steel shell with a copper wire winding that provides a noise reduction design and energy-saving operation, while its large diameter air inlet ensures strong air flow. This fan design guarantees a safe and stable working environment for operators.

2. Advanced Motor

The energy-saving silent motor can run for 24 hours per day and is CE certified for pure copper wiring and durability. With a 2-year warranty, operators can trust in its long life and top-level performance.

3. Overload Protection

The fume extractor has an overload protection circuit to prevent overload and short circuiting, ensuring its high performance and safety during operation.

4. High Temperature Resistant Suction Arm

The suction arm has a strong 400℃ temperature resistance and can hover 360 ° with ease. It can reach any dust generating point with good airtightness, strong toughness, and no dead angle to absorb dust.

5. Advanced Universal Hose

The universal flexible suction arm can hover 360° and is suitable for welding, grinding, material dumping, and other smoke and dust emission working conditions. It effectively captures smoke and dust, preventing it from spreading and keeping it away from the breathing area of operators.

6. Customizable Extraction Hood

The extraction hood shape can be customized, including U shaped, Hat shape, Taper shape, or other special shapes to fit specific work environments.

7. Function Extension Accessories

Multiple function extension accessories are available, including Flame screens, Working spotlights, Smoke sensors, and Temperature sensors for added safety and efficiency.

8. Advanced Hose Inner Bracket Articulated Arm

The fume extractor's stainless steel hose inner bracket is highly resistant to rust, corrosion, and acid and alkali. Using solid steel material guarantees the arm's sturdiness and durable use. It has a power-assisted device for labor-saving operation and freely hovers.

9. Polyester Fiber Cartridge Filter

This fire-resistant design membrane-covered filter material blocks large particles of smoke and dust, and its filtration density is greater than or equal to 99%, ensuring long-lasting and efficient use without the need for frequent replacement.

10. Activated Carbon Fiber Filter Plate

It is an optional configuration for purifying Co, H2, CO2, NO, HF, and MnO produced during welding.

11. Dust Collecting Drawer

The drawer makes it easy to collect and remove waste and dust, keeping it locked in to guarantee safe and effective operation in work environments with large amounts of dust.

13. Cooling Equipment Provides Overheat Protection

The fume extractor's cooling equipment guarantees protection against overheating, ensuring long-lasting use and safe operation.

14. Thickened Hinges for Durable Use

Thickened hinges guarantee durability and long life, perfect for heavy duty use in work environments with a lot of wear and tear.

15. New Material Extraction Arm

The new material extraction arm is simple and easy to use, requiring no assembly and providing highly efficient performance and safety for operators.

16. Advanced Configuration: 3 Stage Suction Arm

The fume extractor comes with a 3 Stage Suction Arm providing top-level performance and durability.

17. CE Certified Motor for All Models

All models feature CE certified motors for added safety, while customers from the international market can request Schneider electrical components such as Breaker and AC contactor for top-level safety and performance.

Technical Parameters:

The centrifugal fan is designed for treating air flow rates that fall within the range of 1500-3000±100 m3/h. The model is equipped with a motor that comes with power rating options of 1.5kW, 2.2kW, or 3.0kW. The power supply options include 220V/50Hz or 380V/50Hz.

The filter cartridge area covers 16-32 m2 and can accommodate one or two pieces of cartridge depending on your needs. The cartridge is fireproof, anti-static and reusable, thanks to its synthetic wood pulp fibers filter medium, which provides filtration efficiency of over 99.9%.

The noise level stays below 65±5dB(A), making this centrifugal fan model suitable for industrial settings where tolerable noise levels are critical. The ash hopper volume of this model is approximately 1.5 L.

The suction arm specification of this model comes in three options of Ø160mm*2m, Ø160mm*2.5m, and Ø160mm*3.0m. The model's weight is 76±10KG or 120±25KG, depending on the board thickness. The dimensions, excluding the suction arm, are 530×700×1000mm for the single arm style and 750×830×1200mm for the double arms style.

The power rating is 2HP(1.5KW) for the standard model, 2.95HP(2.2KW) for the mid-range and 4HP(3KW) for the high-end model. You can choose your customized voltage from the options of 1 Arm 3 HP, 120V/1/60; 2 Arms 4 HP, 480V/3/60, etc. The voltage options are 110/120V, 208/230V, 380/400V, 415V, 480V. The self-cleaning system is either manual or via compressed air pulsing.

Applications:

Mining

The extraction of valuable minerals or other geological materials from the earth is referred to as mining. This industry is known for its enormous contribution to the global economy. However, mining operations can result in negative environmental impacts such as land degradation, deforestation, and water pollution.

Printing

Printing refers to the reproduction of text or images on paper or another material. Despite the widespread use of digital platforms, printing remains a vital industry. However, it also has environmental concerns such as deforestation, chemical waste, and air pollution caused by the use of inks and toners, leading to the need for sustainable printing processes.

Fabrication

Fabrication is the process of transforming raw materials into finished products. The demand for fabricated products in different sectors, including automobile, construction, and aerospace industries is high. Nevertheless, the processes involved, which include welding, grinding, and polishing, produce hazardous pollutants that can harm the environment and human health.

Plasma cutting

Plasma cutting involves cutting conductive metal by directing a high-velocity plasma jet at the metal surface. The process is often used in industries such as car manufacturing, construction, and metal fabrication. Although it is efficient and fast, plasma cutting releases hazardous metal fumes that can have a significant impact on air quality.

All metal welding

All metal welding involves joining two or more pieces of metal through the application of heat, pressure, or a combination of both. This process is extensively used in construction, automotive, and manufacturing industries. However, welding generates dangerous fumes and gases that can pollute the atmosphere and cause adverse health conditions.

Laser cutting and engraving

Laser cutting and engraving are computer-controlled procedures that use an intensified light beam to cut or engrave materials such as wood, acrylic, and metal. These processes are highly precise and efficient, making them popular in the manufacturing and design industries. Nevertheless, laser cutting produces dangerous fumes, and the use of hazardous chemicals for engraving can lead to air pollution and harm the workers.

Other smog-producing industries

Smog-producing industries include different sectors such as transportation, construction, and agriculture. These industries tend to emit high levels of gaseous and particulate emissions that can contribute to smog formation, leading to respiratory illnesses and environmental degradation.

Heavy equipment manufacturing

The heavy equipment manufacturing industry involves the production of machines and equipment used in various applications such as construction, agriculture, and mining. The manufacturing process releases a vast amount of pollutants, including particulate matter, volatile organic compounds (VOCs), and greenhouse gases such as carbon dioxide.

Maintenance and repair operations

Maintenance and repair operations involve tasks such as cleaning, painting, and fixing different machines and equipment. It is an essential aspect of maintaining the efficiency and longevity of different systems. However, these activities typically involve chemicals that can be harmful to the environment and human health, prompting the need for eco-friendly repair products and practices.

Polishing and grinding with low dust production

Polishing and grinding procedures are frequently used in construction, fabrication, and manufacturing activities to smoothen surfaces and provide precision finishes. However, the dust generated during these processes can be hazardous, leading to respiratory and lung-related health issues. The use of low dust production alternatives is essential to avoid air pollution and protect human health.

Customization:

Model	Structure	Air Flow	Filter Area	Power	Cartridge Filter size & quantity	Selfcleaning Mode	Overall Size (LWH)
WFP-QD-SOS25	Single Extraction Arm	480m³/h	4m³	0.25KW	Φ3253001 set	Manual operation	380405507mm
WFP-QD-SSC220	Single Extraction Arm	1500m³/h	12m³	1.1KW	Φ3253001 set	Manual operation	460480890mm
WFP-QD-SBC11	Single Extraction Arm(Big Body)	1500-2000m³/h	12m³	1.1KW	φ3255001 set	Fully automatic cleaning (Compressed air pulse jet)	5007001000mm
WFP-QD-SFB20	Single Extraction Arm	2000-2500m³/h	16m³	2.2KW	φ3253001 set	Manual operation	5306701040mm
WFP-QD-SBC30	Single Extraction Arm(Big Body)	2000-2500m³/h	16m³	2.2KW	Φ3255001 set	Fully automatic cleaning (Compressed air pulse jet)	5007001000mm
WFP-QD-WSC12	Double Extraction Ams	2500m²/h	24m²	2.2KW	φ3253002 sets	Manual operation	5306701040mm
WFP-QD-WBC22	Double Extraction Arms(Big Body)	2500m²/h	24m³	2.2KW	Φ3255002 sets	Fully automatic cleaning (Compressed air pulse jet)	7508001200mm
WFP-QD-WFB30	Double Extraction Arms(Big Airflow)	3000m²/h	32m³	3KW	φ3253002 sets	Manual operation	5306701040mm
WFP-QD-WFB45	Double Extraction Arms(Big Airflow, Big body)	3000m³/h	32m³	3KW	Φ3255002 sets	Fully automatic cleaning (Compressed air pulse jet)	7508001200mm

FAQ:

Here are some frequently asked questions about the Smoke Extractor for Welding:

Q: What is the model number of this product?
A: The model number of this product is SBC20-SBC45.

Q: What certifications does this product have?
A: This product has CE, BAV, and ISO certifications. Other certificates may also be available.

Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 unit.

Q: What is the price of this product?
A: The price of this product is FOB USD330-770/set.

Q: How is this product packaged?
A: This product is packaged in a bubble bag plus a standard wooden box (with pallet).

Q: What is the delivery time for this product?
A: The delivery time for this product is 1-7 working days.

Q: What are the payment terms for this product?
A: The payment terms for this product are T/T, L/C, and D/P.

Q: What is the supply ability of this product?
A: The supply ability of this product is 5000-10000 per month.
