99% Efficient Source Capture Fume Extractor For Smoke Noxious Fumes Extraction

99% Efficient CE Motor Industrial Welding Fume Extractor For Smoke Welding Dust As Air Cleaning Equipment

Product Description:

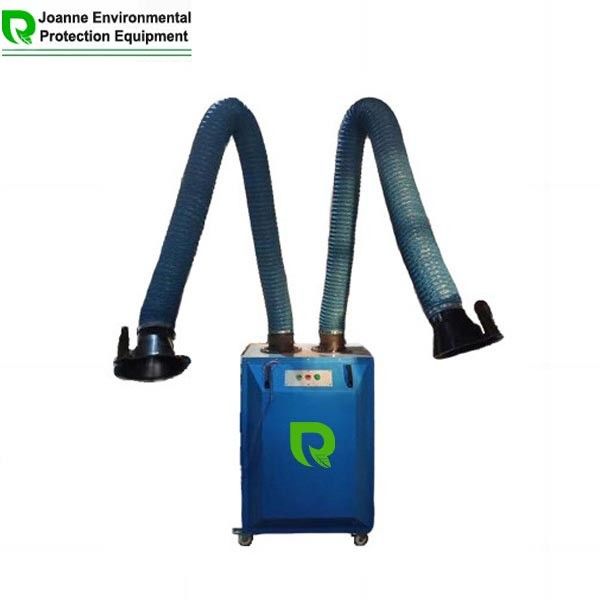

Our industrial welding fume extractor boasts many advantages over other manufacturers. For one, we have had zero malfunctions in the ten years since our establishment. Additionally, we designed our welding smoke extractor for a service life of twenty years, guaranteeing its longevity; The motor of our welding fume extractor is brand new, CE certified, and high vacuum pressure motor is available. With an inlet arm diameter of 160mm and a suction arm length of up to 2.0 meters (maximum 3 meters), our smoke extractor is highly effective at capturing welding fume and smoke; Our welding fume extractor is treated with rust prevention to withstand high temperatures, humidity, and corrosive environments. Its exterior and interior are coated with powder at a thickness of 200-1000 μm for optimal protection against rust even after prolonged use; The cartridge filter of our industrial welding fume extractor is independently developed and has a service life of up to 8 months. We use imported materials such as Toray filtration material to make the filter cartridge, which efficiently filters pollutants of a minimum size of 0.3μm.

Features of Our industrial welding fume extractor: Our fume extractor is designed to be user-friendly and easy to assemble. Once unpacked, the equipment can be directly connected to a power source and compressed gas for use, with the suction arm requiring simple assembly. The copper motor and core cable have leakage and grounding protection for user safety, meeting European market access requirements. The body of our welding fume extractor has excellent sealing, ensuring negative pressure and high air volume. It features multilevel filtering, multiple additional functions, and a computer painting process for logo customization. We also offer multilayer export packaging that ensures the equipment arrives undamaged even after long-distance transportation. Note that there are no extra charges for selecting wooden crate or wooden box packaging for our fume and smoke extractor.

Features:

1. Convenient 360-degree rotation arm
2. Unlimited positioning arm
3. Metal Cabinet Design
4. 3 times larger capture zone
5. Stronger cfm (airflow)
6. More than 95% weld fume particulate filtering
7. Automatic Filter Cleaning
8. Metal Cabinet Design: Ensures durability in manufacturing environments.
9. Convenient Air Connection: Required for operating the cleaning mechanism
10. Easy On/Off Power Switch: Conveniently located for accessibility.
11. Lockable Swivel Casters: Keep fume extraction system stationary during arm movement.

Technical Parameters:

Applications:

*Fabrication
*Mining

*All metal welding

*Plasma cutting
*Laser cutting and engraving

*Maintenance and repair operations

*Heavy equipment manufacturing

*Other smog-producing industries

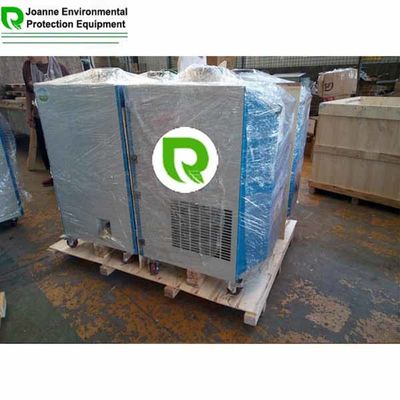

Packing and Shipping:

Product Packaging:

• The Industrial Welding Fume Extractor will be securely packaged in a sturdy box to prevent damage during shipping.
• All necessary accessories and instruction manuals will be included in the package.
• The package weight is approximately 90kgs.

Shipping:

• The Industrial Welding Fume Extractor will be shipped via a reputable carrier, such as UPS or FedEx.
• Shipping costs will be calculated based on the destination and will be added to the total order cost.
• The estimated shipping time is 3-5 business days within the continental United States.
• Tracking information will be provided once the item has been shipped.

FAQ:

1. Can I avoid using a filtration extractor and instead collect my fumes through a wall mounted arm and blower that exhausts the fumes outdoors?
Yes you can. Local authorities, however, may place certain restrictions on this practice, so we advise checking with applicable agencies to ensure conformance with the government requirements.

2. How close should my fume extractor’s hood be to the welding arc?
Welding fume extraction hoods should be placed close enough to the welding arc to be effective, yet not so close as to distrub shielding gases perform its function.

3. How do I dispose of used filters?
Used filters can be easily removed from the extractors. We recommend the operator wearing gloves and protective eyewear, placing the removed filters into a trashbag;
However, before this, please make sure that the filter cartridge can still be used after cleaning and drying, because we manufacture the filter cartridge with the material that can be used again and again.

4. If I were to exhaust welding fumes outdoors through a wall mounted arm and blower, can I retrofit the components to a filtration system should this method become prohibited?
Yes, the stationary system is designed to accommodate such a change in regulations, so you can purchase.

5. What do the different filter ratings mean?
Filters are rated on their efficiency to stop and trap particulate of a particular size. Most filters used in our fume extractors base on the particle size of their filtered dusty smoke.

6. Why should I use a fume extractor instead of an ambient (overhead) air cleaner?
Ambient air cleaners are effective supplements to fume extractors, but should be avoided as a primary tool for fume control. Due to its filtering properties and relatively high usage costs.

7. How long do filters last?
There is no clear answer to this question as too many factors can influence the life of filters, including, but not limited to, welding process.

8. How do I know which extractor to choose?
There are several factors that determine the best extractor to use, including location, usage, materials, and quantity of smoke/fume produced. In general, however, this fume extractor is mainly used to remove smoke, not suitable for a large amount of dust working conditions.

9. How do I know which filters to use in my extractor?
We makes a wide variety of filters available that work in combination to provide the best possible filtration for your work application. Generally speaking, 95% smoke and fume suitable for use with cartridges style filter.
