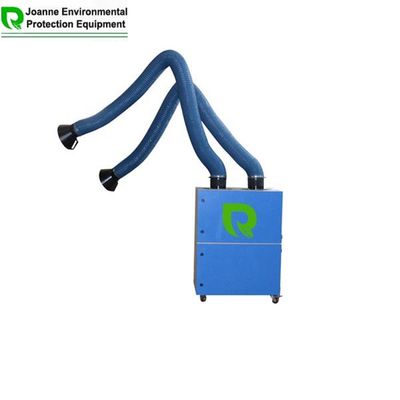

2500m3/H Industrial Fume Extraction System Smoke Extractor 16m2 Filtering Area

2300m3/H Air Flow 16m2 Filtering Area Industrial Welding Fume Extractor Electric Smoke Extractor

Product Description:

Advantages of our industrial welding fume extractor. Our industrial welding fume extractor offers many benefits that set us apart from other manufacturers. Here are just a few of them: Ten years with zero malfunctions for reliable performance; Designed for a service life of up to twenty years for long-lasting use; CE motor for high vacuum pressure (with an option for even higher pressure); Inlet arm with a diameter of 160mm and a suction arm of up to 3 meters; Rust prevention treatment for both the exterior and interior of the machine; Powder coating process with a thickness between 200-1000 μm for added durability; Cartridge filter with imported materials for high efficiency and up to 8 months of use; Can filter dust particles as small as 0.3μm for effective pollutant removal; Easy to Assemble and Use.
Low vacuum high flow system may have lower initial costs, while high vacuum low flow system have higher upfront costs. Both systems require regular maintenance, including replacing cartridge filters and checking extraction efficiency. Each system has unique advantages and is suitable for different welding environments and requirements. The correct fume and smoke extraction solution contributes to health and regulatory compliance, as well as the overall quality of welding work.

Features:

1. Negative pressure zone to funnel air efficiently
2. Superior filtering for welding fumes.
3. Ensures high-efficiency particle filtration
4. Automatic Filter Cleaning: Extends filter life with pulse cleaning cycle
5. Particulate Disposal Bin: Provides easy access for emptying collected particulate
6. Metal Cabinet Design: Ensures durability in manufacturing environments.
7. Convenient Air Connection: Required for operating the cleaning mechanism
8. Easy On/Off Power Switch: Conveniently located for accessibility.
9. Lockable Swivel Casters: Keep fume extraction system stationary during arm movement.
10. 9.8 ft. Extraction Arm
11. Power Cord Connector
12. Funnels air from maximum 5 feet away
13. Convenient 360-degree rotation arm
14. Unlimited positioning arm
15. Metal Cabinet Design
16. 3 times larger capture zone

Technical Parameters:

Applications:

*Heavy equipment manufacturing
*Fabrication
*Mining
*Maintenance and repair operations
*All metal welding
*Laser cutting and engraving
*Plasma cutting
*Other smoke-prone industries

Overall, the QD SBC30 Industrial Welding Fume Extractor is a reliable and efficient choice for any industrial welding application. With its high-quality filtration system, impressive air flow, and easy-to-use suction arm, this extractor is a must-have for any workplace concerned with employee safety and health.


Customization:

Certification: CE BAV ISO SGS(Available)
Minimum Order Quantity: 1 Set
Packaging Details: Bubble bag plus wooden box
Colour: All colour available
Voltage: 110V 220V 380V 415V
Power: 1.5kW 2.2kW 3.0kW
Air Flow: 2000-3000m3/h
Suction arm size: 6.3″ X 8.2' Or 6.3″ X 9.8'

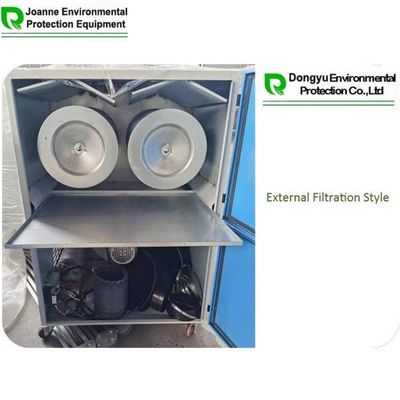

Filter layer with activated carbon
Dust drawer dimensions could be customized

Packing and Shipping:

Product Packaging:

• One Industrial Welding Fume Extractor
• One User Manual
• Spare parts

Shipping:

• Free standard shipping
• Expedited shipping options available
• Shipping available to most countries by air, by sea, or by train.

FAQ:

1. How do I know which extractor to choose?
There are several factors that determine the best extractor to use, including location, usage, materials, and quantity of smoke/fume produced. In general, however, this fume extractor is mainly used to remove smoke, not suitable for a large amount of dust working conditions.

2. How do I know which filters to use in my extractor?
We makes a wide variety of filters available that work in combination to provide the best possible filtration for your work application. Generally speaking, 95% smoke and fume suitable for use with cartridges style filter.

3. How long do filters last?
There is no clear answer to this question as too many factors can influence the life of filters, including, but not limited to, welding process.

4. If I were to exhaust welding fumes outdoors through a wall mounted arm and blower, can I retrofit the components to a filtration system should this method become prohibited?
Yes, the stationary system is designed to accommodate such a change in regulations, so you can purchase.

5. What do the different filter ratings mean?
Filters are rated on their efficiency to stop and trap particulate of a particular size. Most filters used in our fume extractors base on the particle size of their filtered dusty smoke.

6. Why should I use a fume extractor instead of an ambient (overhead) air cleaner?
Ambient air cleaners are effective supplements to fume extractors, but should be avoided as a primary tool for fume control. Due to its filtering properties and relatively high usage costs.

7. Why should I use a fume extractor instead of placing fans in my shop to blow the fumes away from my welders?
The practice of using fans and blowers in this manner is called the dilution method, and while it is commonly used, this method may not effectively remove toxic particles from the air and cannot avoid being inhaled by workers.
